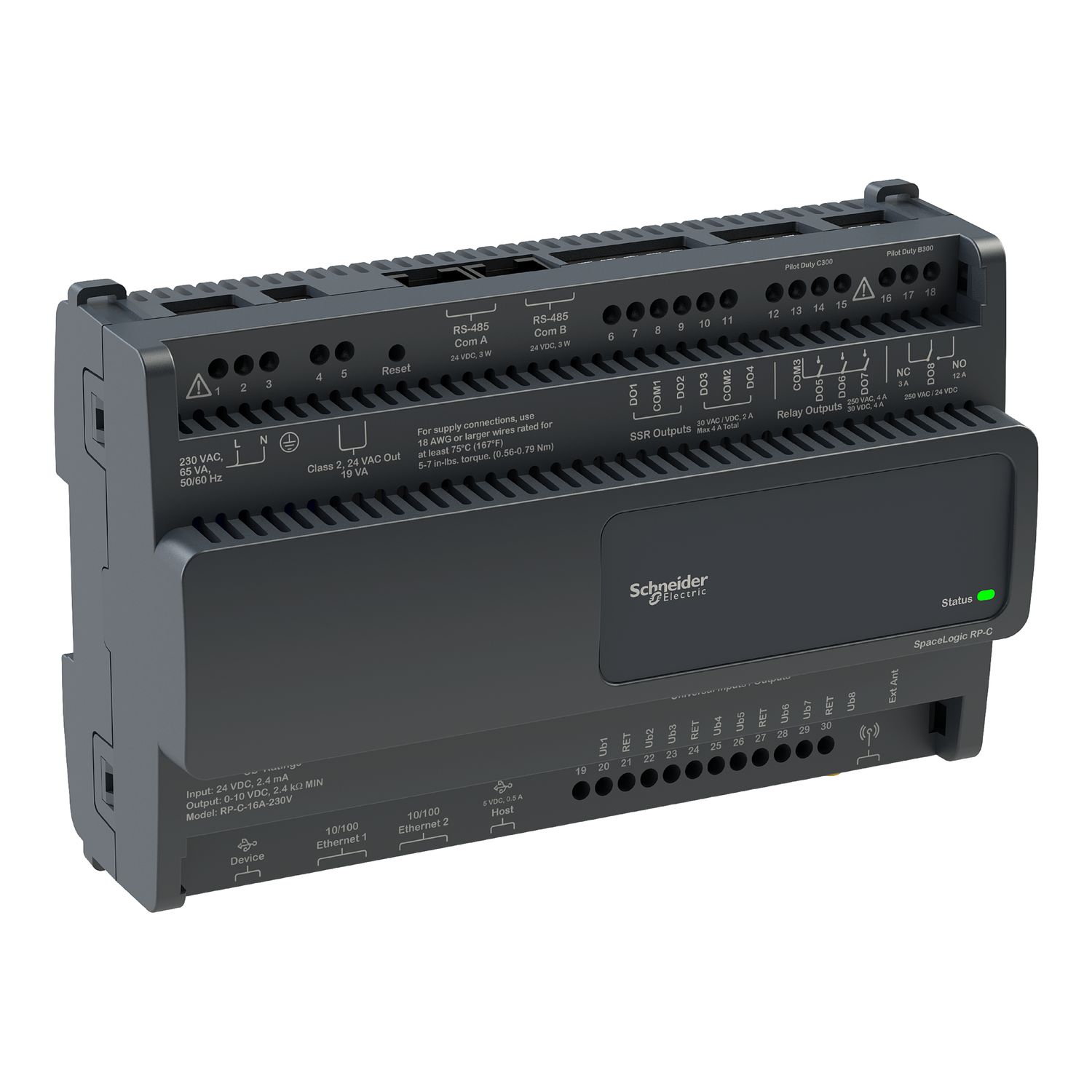

Controller, SpaceLogic RP-C, 16 points, 8 universal I/O, 4 solid-state relay, 3 form A relay, 1 form C high power relay

Manufacturer: Schneider Electric

SKU: SXWRCF16A10003

GTIN: 3606481097378

User guide

Instruction sheet

Environmental Disclosure

CAD

Circularity Profile

Declaration of conformity

Old price: $1,649.65 inc GST

Price: $2,181.66 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

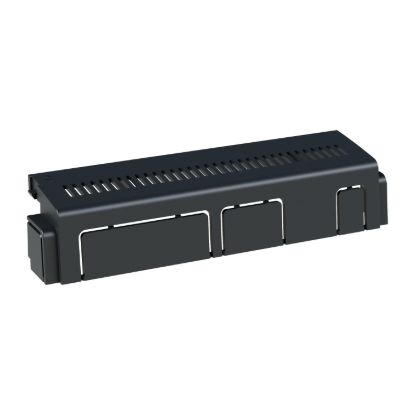

SpaceLogic RP-C Controller is a room-purpose, fully programmable, BACnet IP field controller for HVAC and Connected Room solutions applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a AS-P, AS-B or an Enterprise Server as the parent server. The RP-C features a wireless chip that allows the mobile commissioning application to connect directly to the controller. The RP-C controller comes in three models with different I/O count. The RP-C-16A has 8 universal I/O Type Ub, 4 solid-state relay outputs, 3 Form A relays and 1 high power relay outputs. Its dimensions are 164 mm (6.5 in.) in height, 181 mm (7.1 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available optional covers (SXWRPCCOV10001), DIN-RAIL clip/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).

Products specifications

Attribute name	Attribute value
Main
Device short name	RP-C-16A-F-230V
Device application	chilled beam, low voltage fan coil, HVAC
[Us] rated supply voltage	207...253 V AC
Discrete output voltage	<= 30 V DC for solid state output, 24 V AC for solid state output, 24 V DC for voltage relay, 250 V AC for voltage relay, 30 V DC for control relay, 250 V AC for control relay, 0...10 V for output circuit
Range	EcoStruxure Building Operation
Discrete output current	12 A for voltage relay (DO8), 4 A for control relay (DO5...DO7), 2 A for solid state output (DO1...DO4), 2 mA for load
Product name	SpaceLogic room purpose controller
Product or component type	programmable controllers
Discrete output number	1 relay voltage circuit, 3 relay control circuit, 4 solid state
Product brand	Schneider Electric
Complementary
Switching frequency	25 Hz
Memory description	internal data storage (FRAM) 128 kB, flash 48 MB, internal 6 MB
Maximum power consumption in VA	65 VA
Insulation	between power output and ground at 5000 V AC, between output and ground at 3000 V AC
Analogue input type	configurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 0...2 mA
Product compatibility	SmartX living space sensor, Linx Technologies antenna, Invensys (FD), Johnson Control, Honeywell, Satchwell, Balco, Continuum, I/NET, Xenta
Depth	64 mm
Display type	without display
Width	180 mm
Realtime clock	with
Discrete input current	2.4 mA
Temperature probe type	Pt 1000 - 50...150 °C, Ni 1000 - 50...150 °C, LG-Ni 1000 - 50...150 °C
Local signalling	1 LED (green) for status
Mounting support	wall-mount, DIN rail
Absolute accuracy error	+/- 0.5 °C for - 50...70 °C, +/- 0.01 mA plus + 0.4 % of reading for current, +/- 7 mV plus + 0.2 % of reading for voltage
Mechanical durability	100000 cycles for voltage relay, 100000 cycles for control relay
Integrated connection type	RS485 room picto with bus connector, RS485 sensor with bus connector, port with USB host port type A connector, port with USB 2.0 type B connector and mini USB interface
Processor name	ARM Cortex-A7
Function available	PWM
Topology	ring, star, daisy chain
Input/output number	8
Net weight	472 g
Material	ABS/PC
Backup time	7 days
Protection type	built-in by varistor, internal fuse
Communication port protocol	Bluetooth 5.0 LE - SMA, BACnet IP
Clock drift	1 min/month at 25-25 °C
Maximum current per output common	4 A at COM 1 + COM 2
Port Ethernet	10/100BASE-TX 2 port
Communication service	programming, RSTP (Ring topology support)
Discrete input voltage type	DC
Discrete input voltage	0...10 V
Height	110 mm
Electrical connection	SMA antenna with cable, 1 terminal(s), screw terminals, 3 terminal(s) form C relays, screw terminals, 3 terminal(s) power supply, screw terminals, 10 terminal(s) output, screw terminals, 12 terminal(s) for inputs and outputs
Input impedance	47 Ohm for current circuit, 100 kOhm for voltage circuit
Network frequency	60 Hz, 50 Hz
Cable length	3 m for USB port
Environment
IP degree of protection	IP20
Relative humidity	0-95 %, non-condensing
Ambient air temperature for storage	-20-70 °C
Flame retardance	UL94-5V
Electromagnetic compatibility	radiated emission conforming to EN 300-328, immunity to electromagnetic emissions conforming to EN 50491-5-3, immunity to electromagnetic emissions conforming to EN 61000-6-2, electromagnetic emission conforming to EN 50491-5-2, electromagnetic emission conforming to EN 61000-6-3
Ambient air temperature for operation	0-50 °C
Product certifications	Eu.BAC, RCM, CE, cULus, BTL
Pollution degree	2
Standards	EN 50491-3, EN 60730-2-11, EN 60730-1
