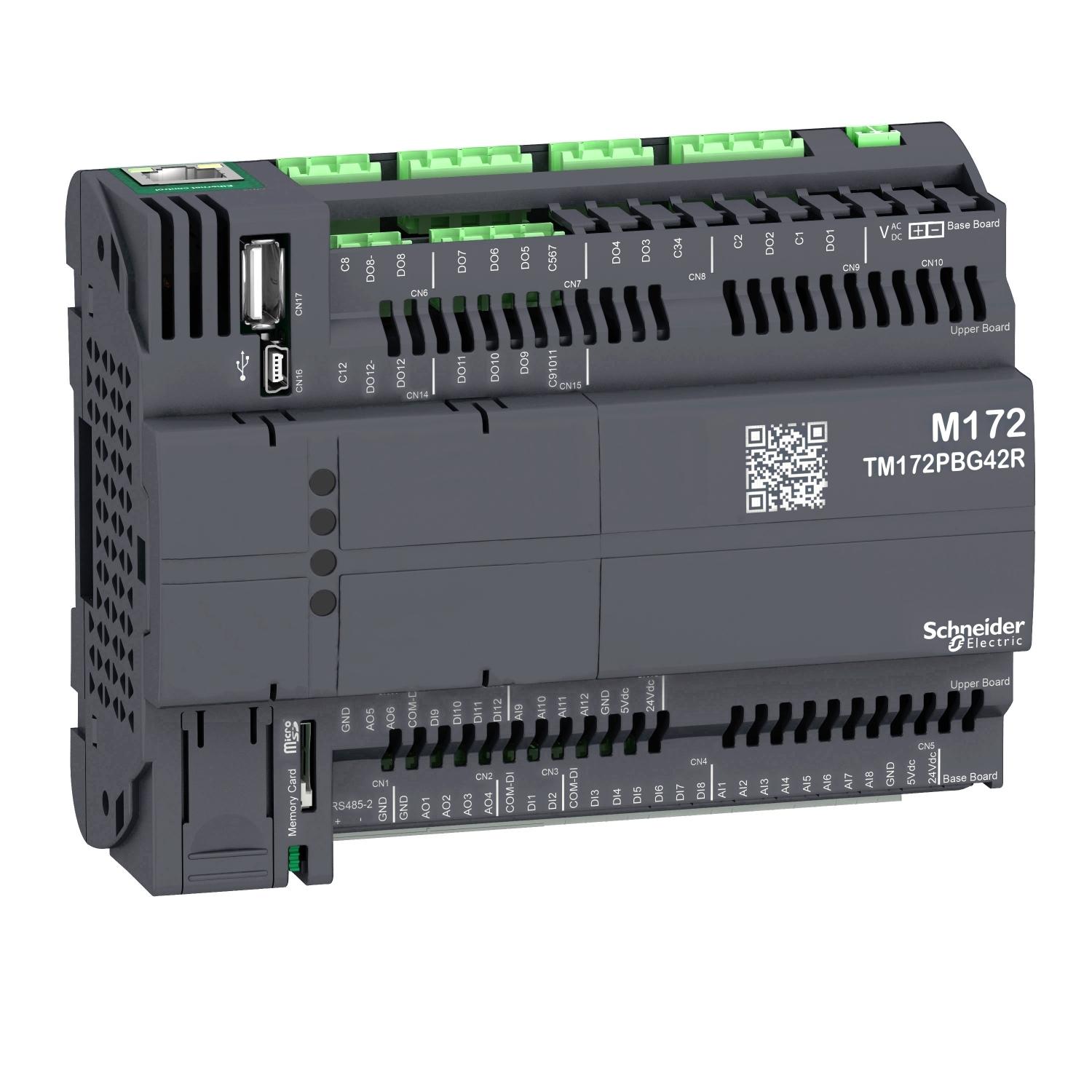

Controller, Modicon M171/M172/M173, performance, blind, 42 IO, Ethernet, Modbus

Manufacturer: Schneider Electric

SKU: TM172PBG42R

GTIN: 3606480894879

Catalog

User guide

Instruction sheet

Environmental Disclosure

Brochure

Circularity Profile

Availability: Out of stock

Old price: $1,091.20 inc GST

Price: $1,320.35 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 12 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 12 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC control. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	3 A for relay SPST, 1 A for relay SPDT
Number of inputs/outputs	42
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	12
Analogue input number	12 configurable by pair
Product or component type	programmable controllers
Variant	programmable
Discrete output number	3 for relay outputs SPST with independent common, 2 for relay outputs SPDT with same common, 2 for relay outputs SPST with independent common, 5 for relay outputs SPST with same common
Analogue output number	2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz), 4 voltage, range: 0...10 V
Complementary
Input/output number	12 digital output(s), 12 digital input(s), 6 analog output(s), 12 analog input(s)
[Us] rated supply voltage	20...38 V DC, 24 V +/- 10 % AC
Display type	without display
Discrete input voltage	24 V AC/DC
Height	110 mm
Discrete input logic	sink or source (positive/negative)
Depth	60.5 mm
Overvoltage category	II
Analogue input type	Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C, voltage 0...5 V (absolute or ratiometric), PTC temperature probe - 55...150 °C - resolution: 0.1 °C, current 0...20 mA/4...20 mA, NTC temperature probe - 40...150 °C - resolution: 0.1 °C, voltage 0...10 V, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), direct input, impedance 0...300 daOhm, impedance 0...1500 hOhm
Realtime clock	built-in clock at -20-60 °C
Width	144 mm
Discrete input current	2.5 mA
Input impedance	20 kOhm
Local signalling	1 LED (green) for power, 1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	24-24 V DC at 150 mA supplied by the controller, 5-5 V DC at 50 mA supplied by the controller
Number of port	1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver), 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 USB type mini B - USB device port Mini-B, 1 USB type A - USB type A female, 1 CAN port - screw terminal block
Net weight	0.385 kg
Mounting support	DIN rail, panel mounting with accessory
Power consumption in W	15 W at 24 V AC/DC
Environment
IP degree of protection	IP20
Relative humidity	5-95 % non-condensing
Ambient air temperature for storage	-30-70 °C
Directives	86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
Ambient air temperature for operation	-20-65 °C with derating conforming to UL 60730-1, -20-60 °C conforming to UL 60730-1
Pollution degree	2
Operating altitude	0...2000 m
Standards	UL94 (material V0), EN/IEC 60730
Product certifications	CSA, CE, cURus, EAC
