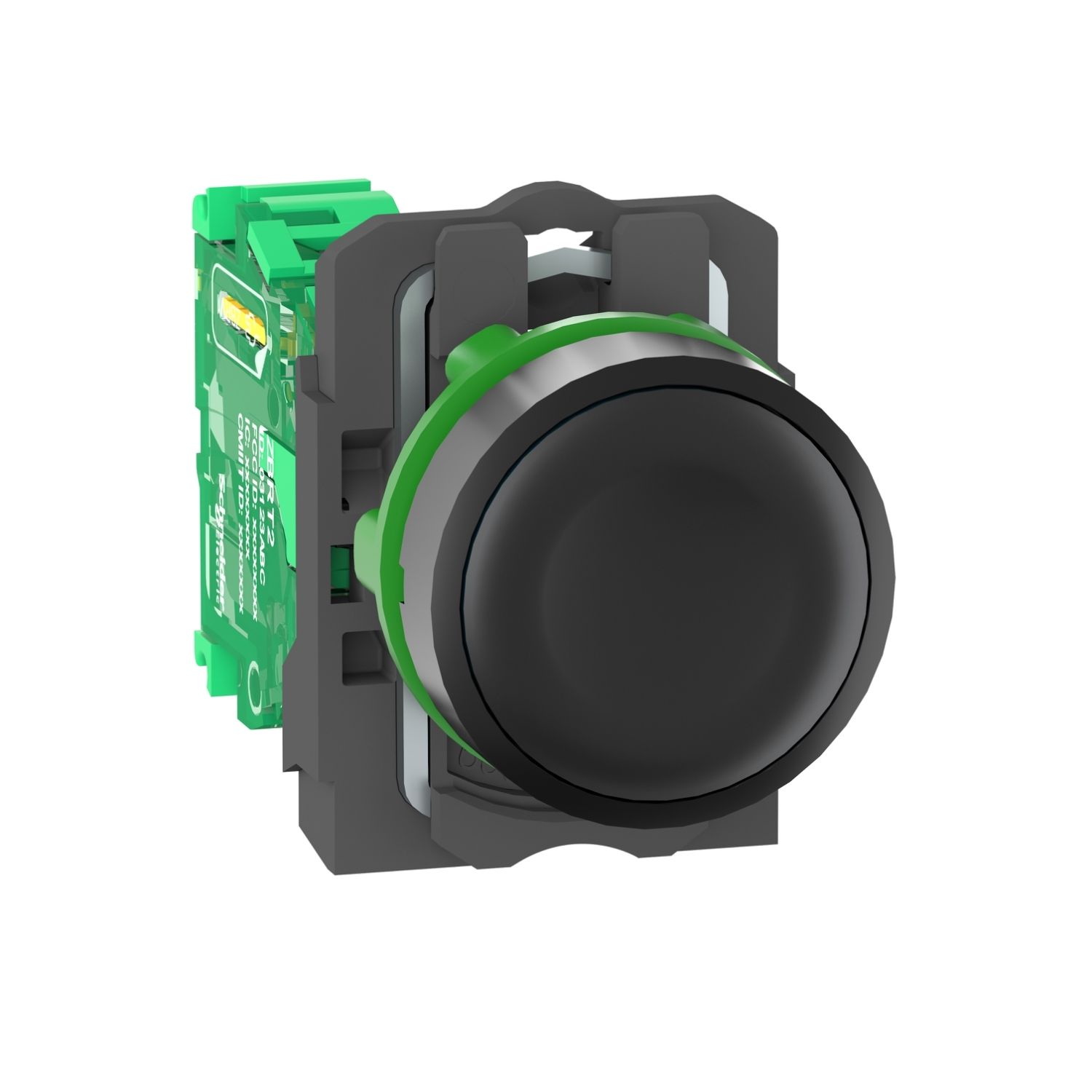

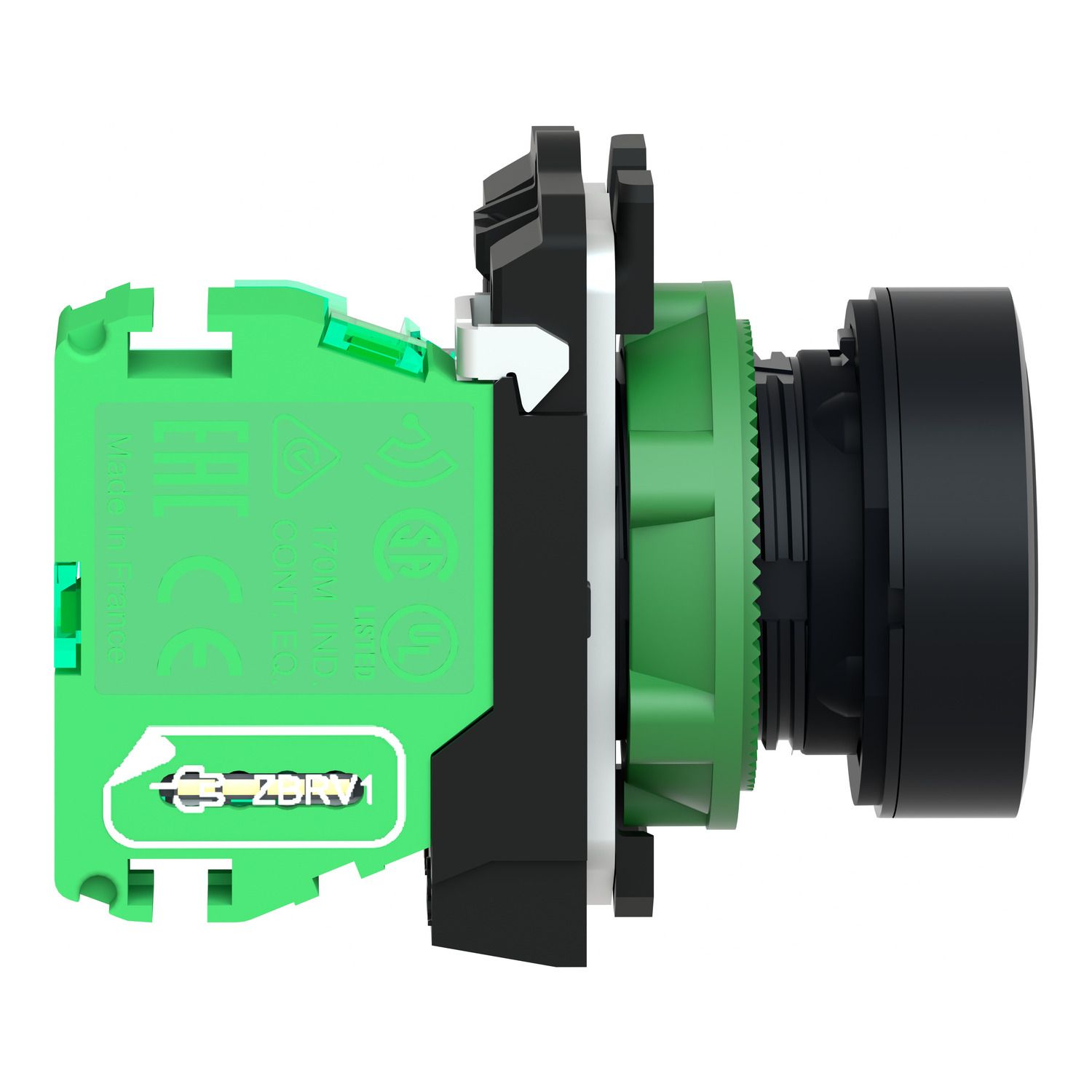

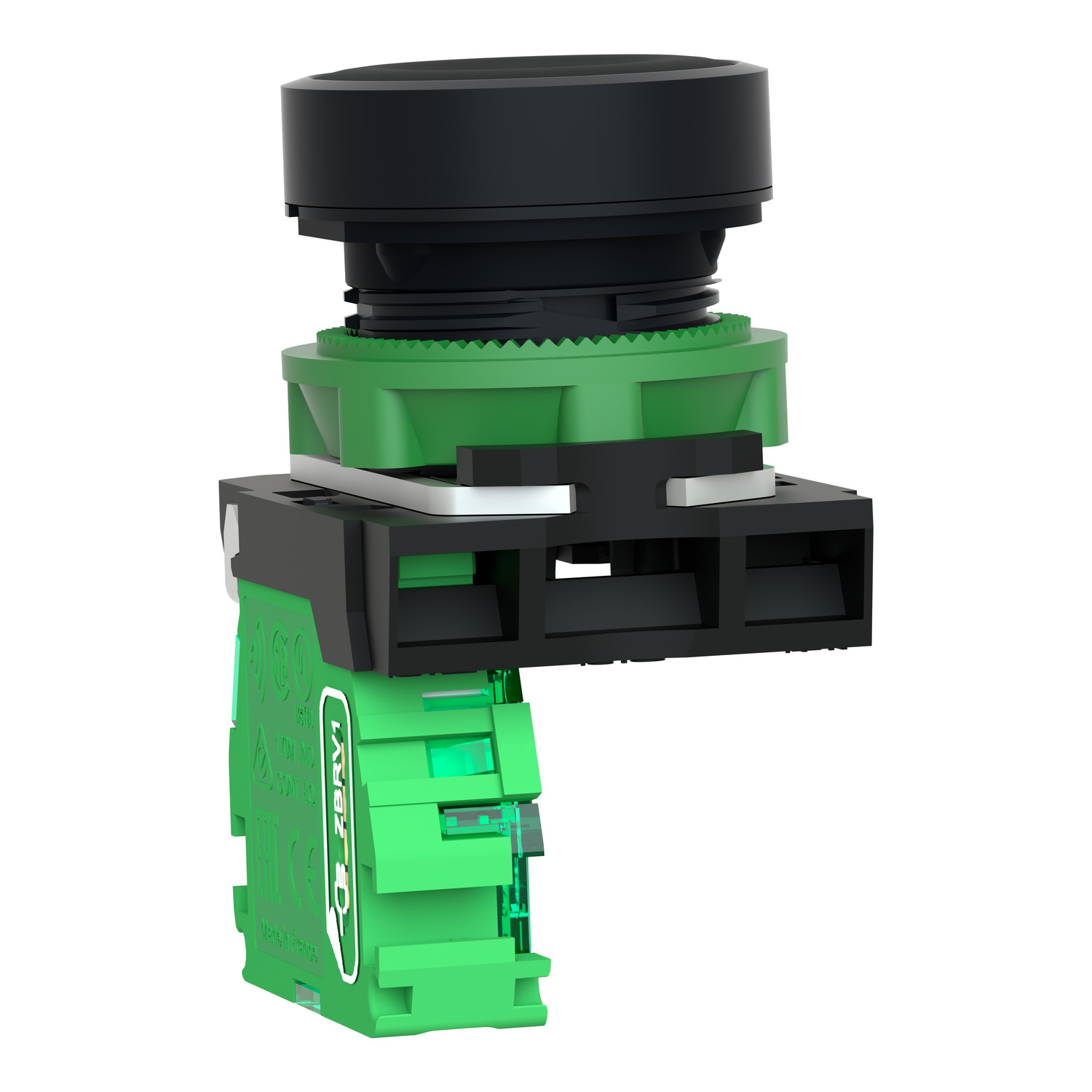

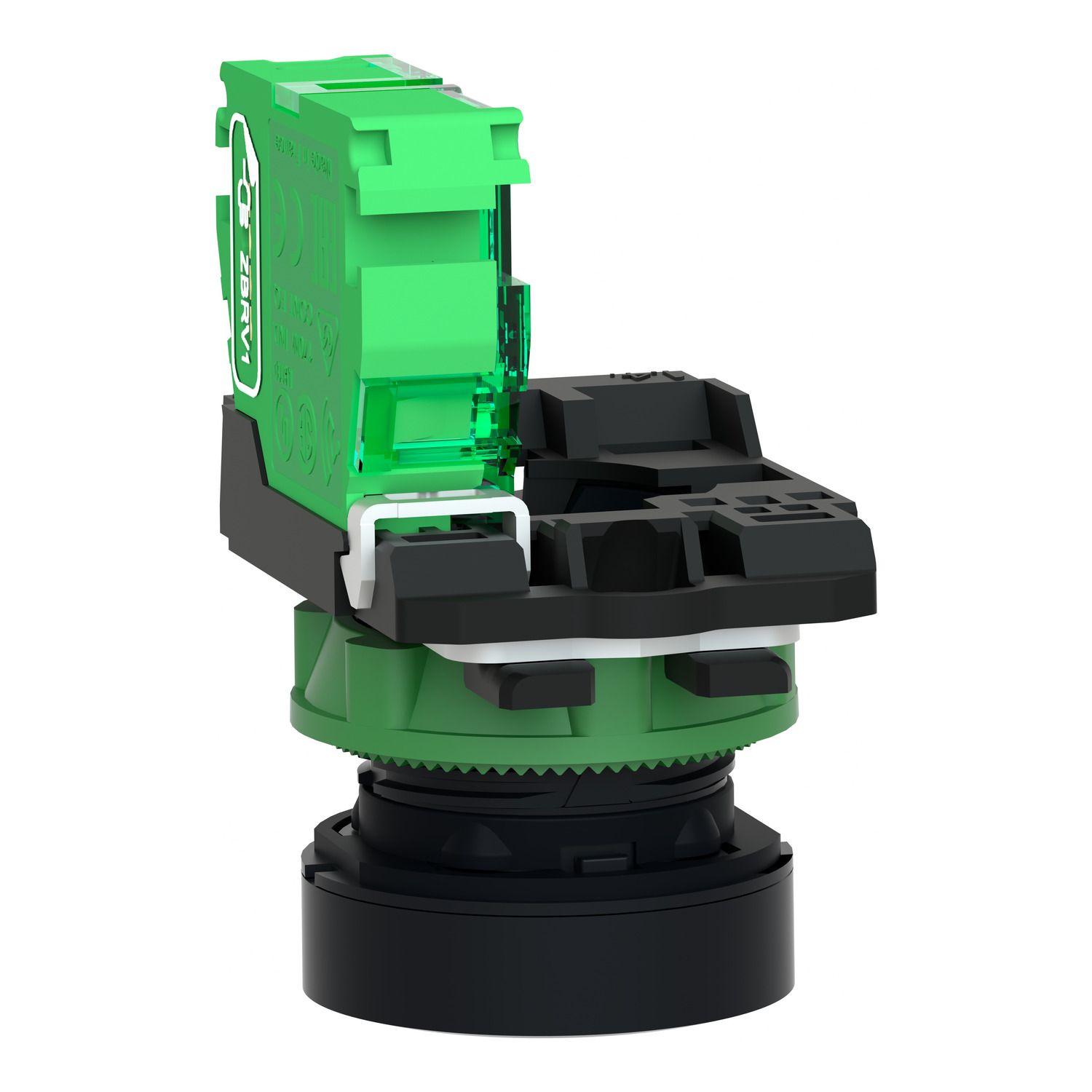

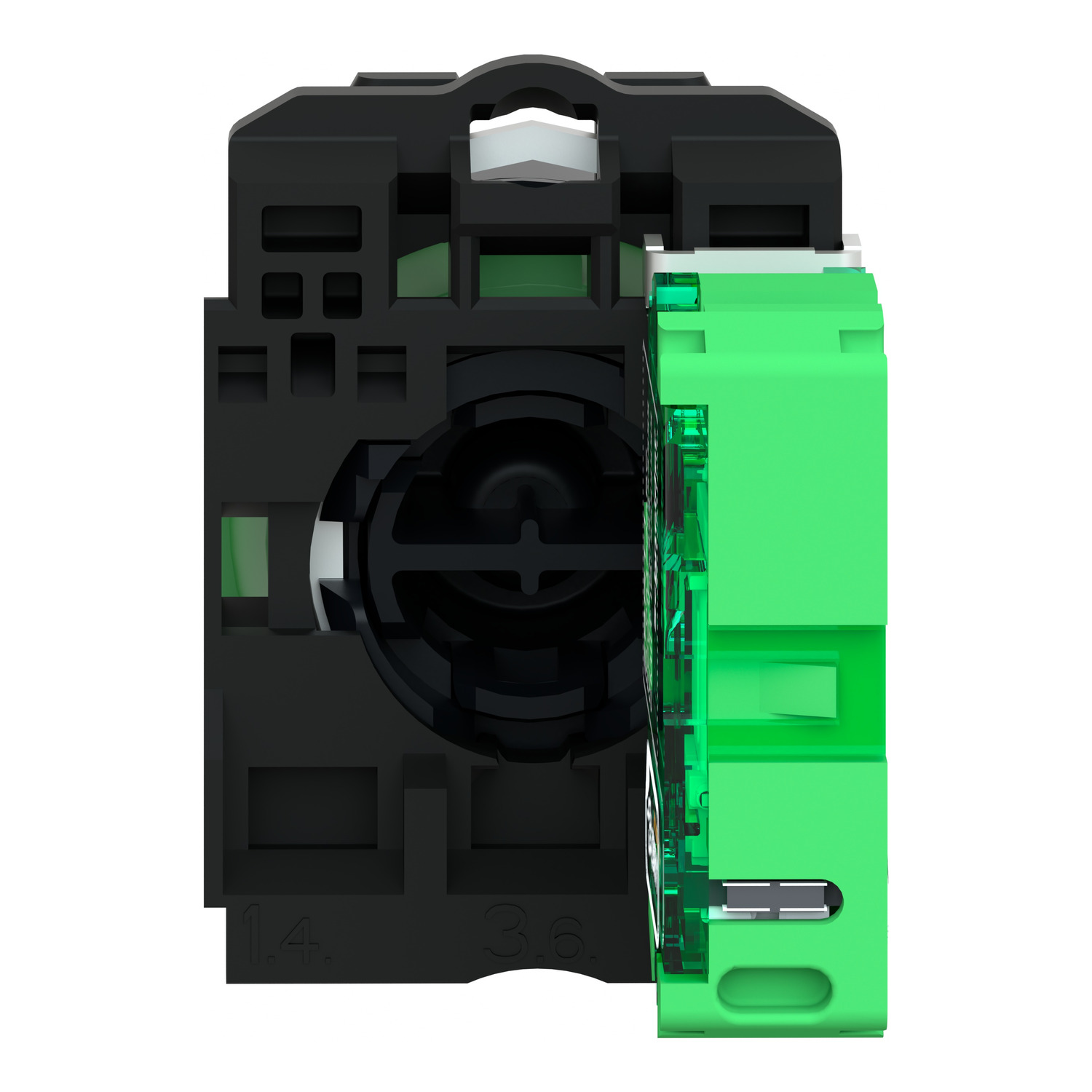

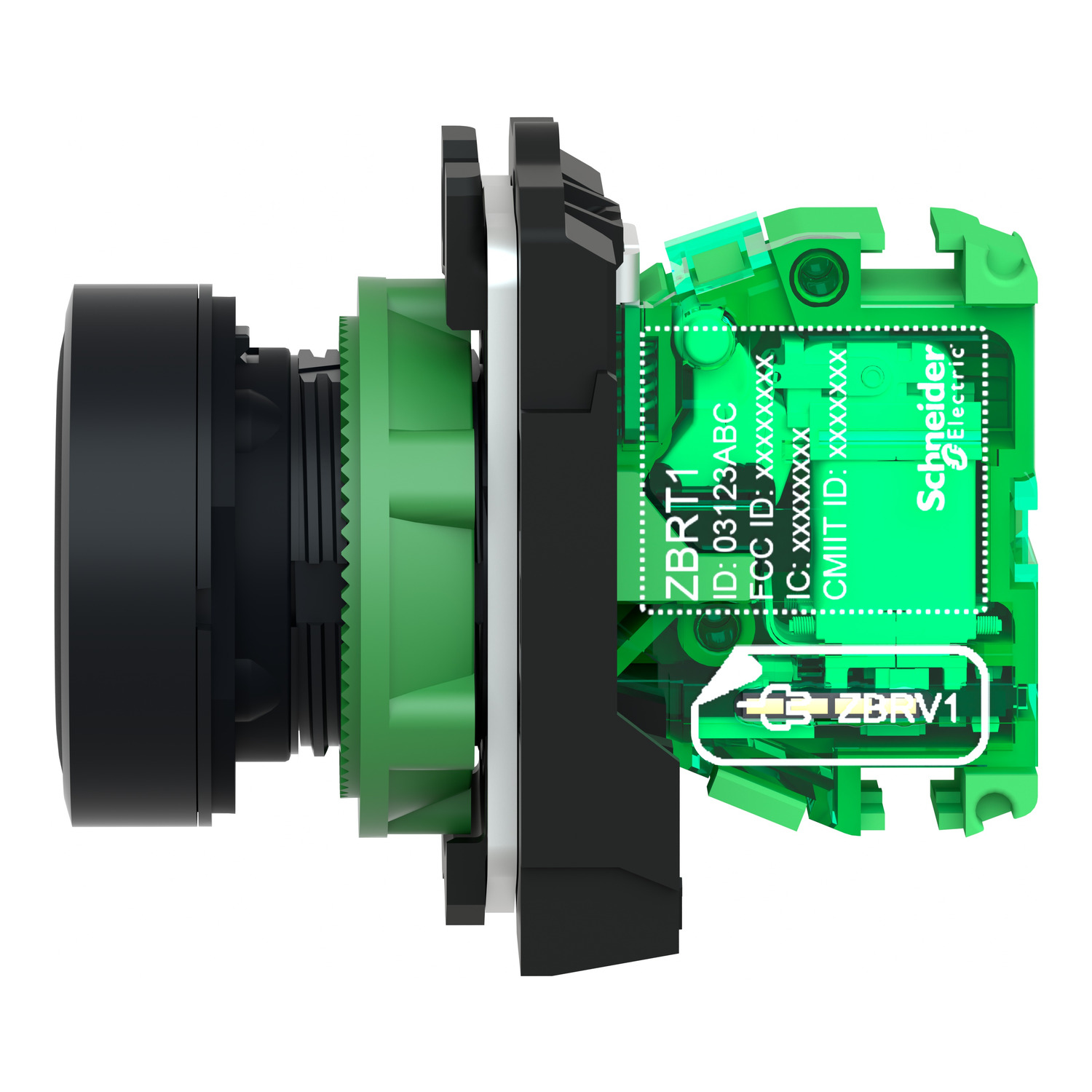

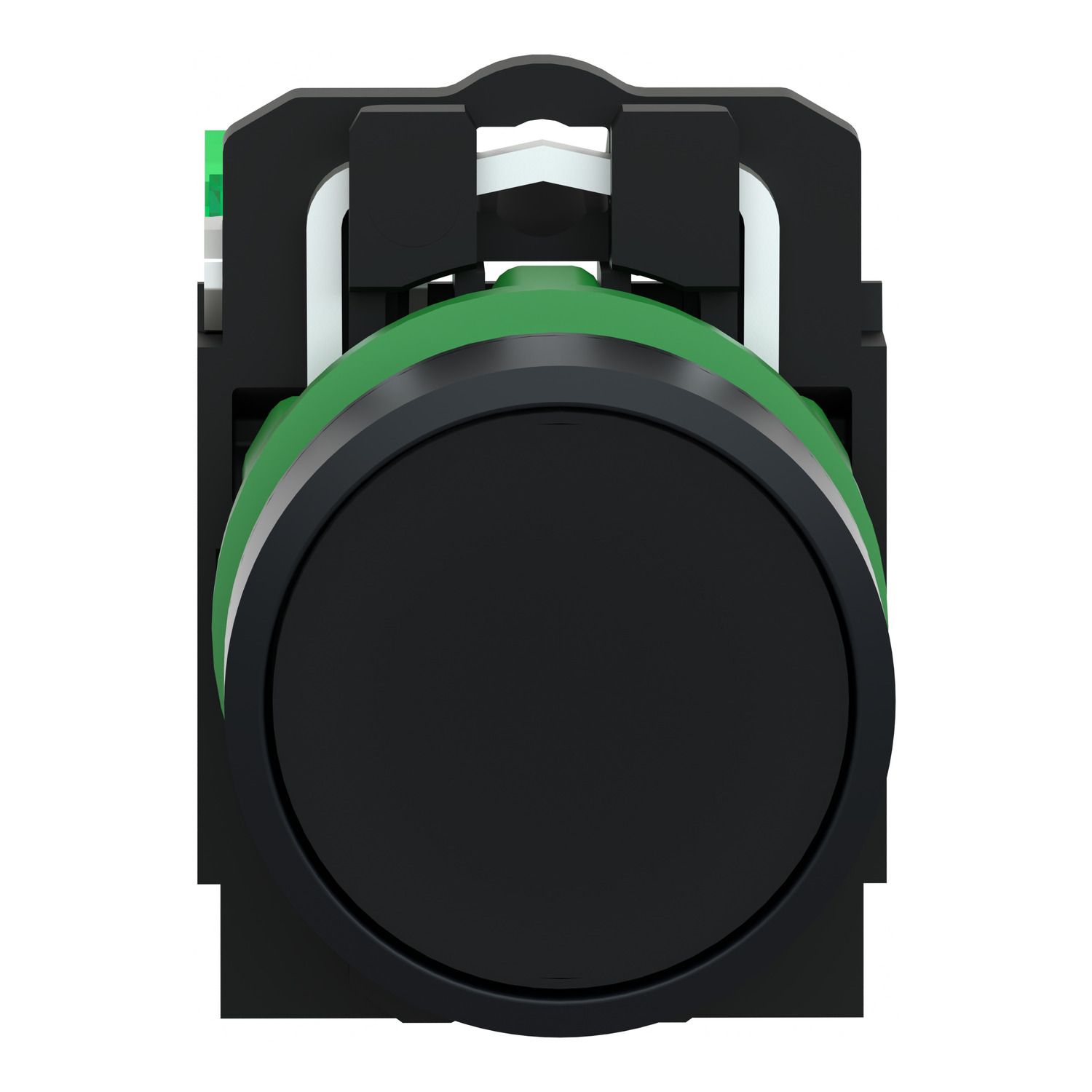

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return flush push button head with black clipped-in cap.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB5R |
| Bezel material | dark grey plastic |
| Level or class | 5M00G7W |
| Fixing collar material | plastic |
| Product or component type | wireless and batteryless transmitter |
| Mounting diameter | 22 mm |
| Transmission frequency | 2405 MHz |
| Range of product | Harmony XB5 |
| Antenna type | omnidirectional |
| Complementary | |
| Group of product | flush push wireless |
| Bandwidth | 5-5 MHz |
| CAD overall depth | 43 mm |
| Emission power | 3 mW |
| CAD overall width | 30 mm |
| Radio agreement | RSS, ICASA, FCC, ARIB T66, ANATEL |
| Station name | XALK 2...5 cut-outs, XALD 1...5 cut-outs |
| Customizable | no, 0 |
| Marking | unmarked |
| Operator profile | black flush |
| Number of channels | 16 |
| Max power consumption in W | 1 mW |
| Maximum sensing distance | 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 100 m in free field |
| Cap/operator or lens colour | black |
| CAD overall height | 41.5 mm |
| Net weight | 0.045 kg |
| Antenna gain | 0 dBi |
| Response time | < 2 ms |
| Shape of signaling unit head | round |
| Communication port protocol | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Type of operator | spring return push-button with transmitter |
| Electrical composition code | PW1 |
| Acquisition time | 2 ms |
| Fixing mode | fixing nut beneath head: 2-2.4 N.m |
| Operating travel | 4.3 mm (total travel) |
| Main group | wireless push-button |
| Embedding depth | 42 mm |
| Standards | UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No 14 |
| Modulation Technique | O-QPSK |
| Operating force | 10 N C/O changing electrical state |
| Mechanical robustness | free fall resistance 1000 mm conforming to EN/IEC 60068-2-32 |
| Environment | |
| Mechanical durability | 1000000 cycles |
| Relative humidity | 95-95 % at -40-70 °C without condensation |
| Ambient air temperature for storage | -40-70 °C |
| Directives | 1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility |
| IP degree of protection | IP69K (front face) conforming to IEC 60529, IP69 (front face) conforming to IEC 60529, IP67 (front face) conforming to IEC 60529, IP66 (front face) conforming to IEC 60529 |
| Vibration resistance | +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, 5 gn (f= 11-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27 |
| Electromagnetic compatibility | susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Product certifications | GOST, UL, CSA, C-Tick, BT 2006/95/EC |
Only registered users can write reviews
Related products

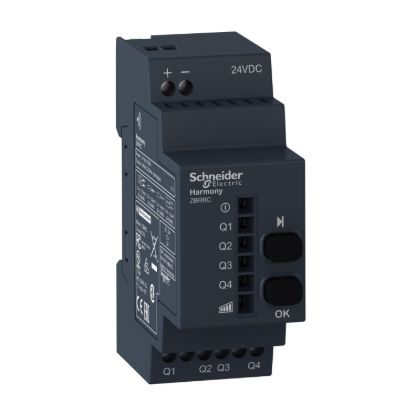

Configurable receiver, Harmony XB5R, 4 PNP, 2 buttons, 6 indicating LEDs, monostable, 24V DC
ZBRRC
Configurable receiver, Harmony XB5R, 4 PNP, 2 buttons, 6 indicating LEDs, monostable, 24V DC
$396.55 inc GST
$241.26 inc GST
External antenna for harmony Hub ZBRN1 and ZBRN2, Harmony XB5R, 2m cable, 1 radio frequency connector
ZBRA2
External antenna for harmony Hub ZBRN1 and ZBRN2, Harmony XB5R, 2m cable, 1 radio frequency connector
$124.52 inc GST
$75.76 inc GST
Harmony Hub wireless serial line gateway, Harmony XB5R, Zigbee green power gateway, wireless to modbus, 24...240V AC DC
ZBRN2
Harmony Hub wireless serial line gateway, Harmony XB5R, Zigbee green power gateway, wireless to modbus, 24...240V AC DC
$989.89 inc GST
$602.25 inc GST
Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs
ZBRRD
Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs
$598.40 inc GST
$364.07 inc GST

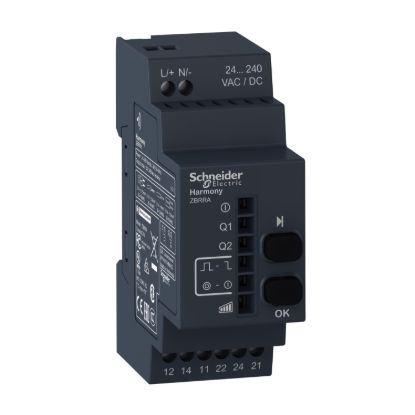

Programmable receiver, Harmony XB5R, 2 relays, 24..240 V AC/DC, 2 pushbuttons, 6 LEDs
