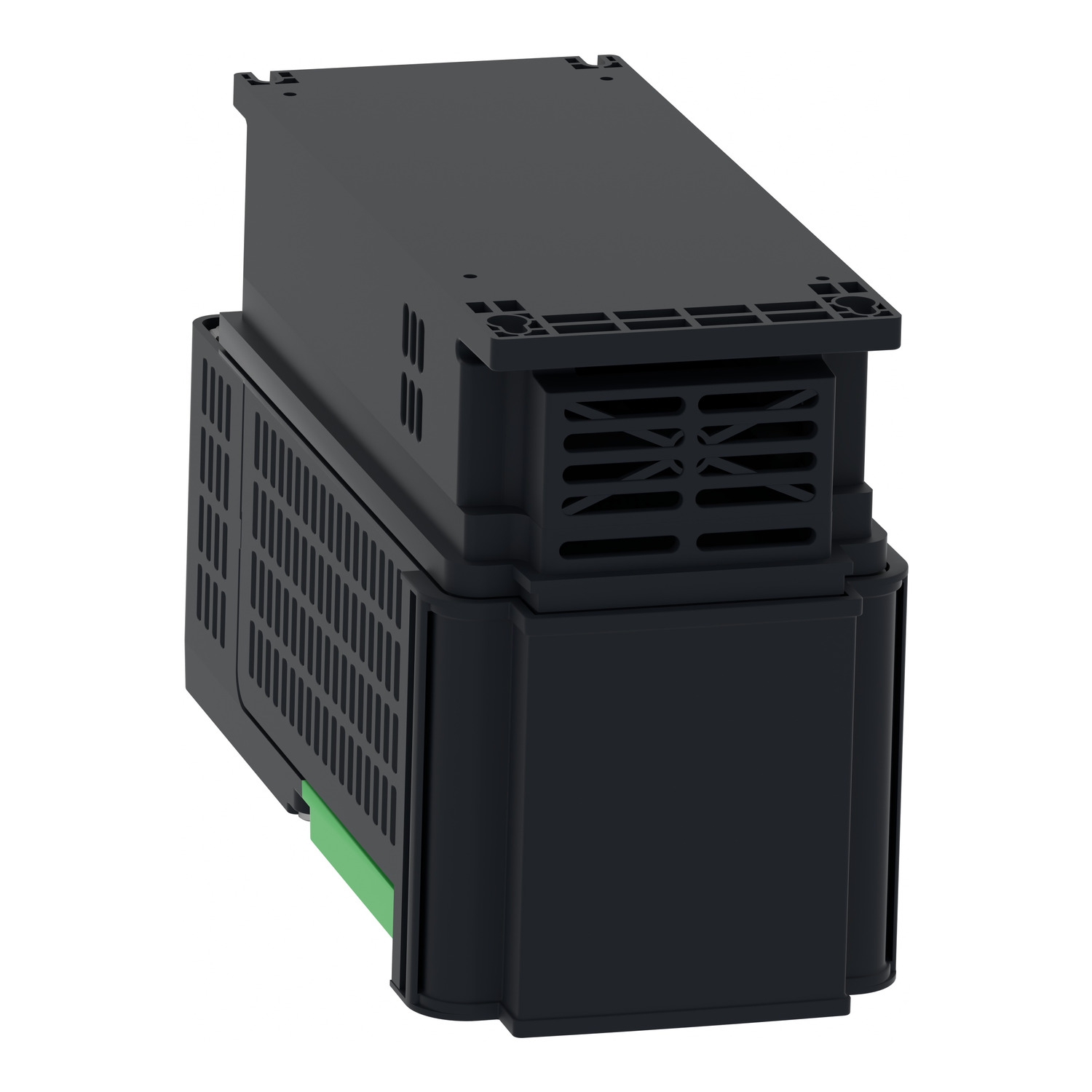

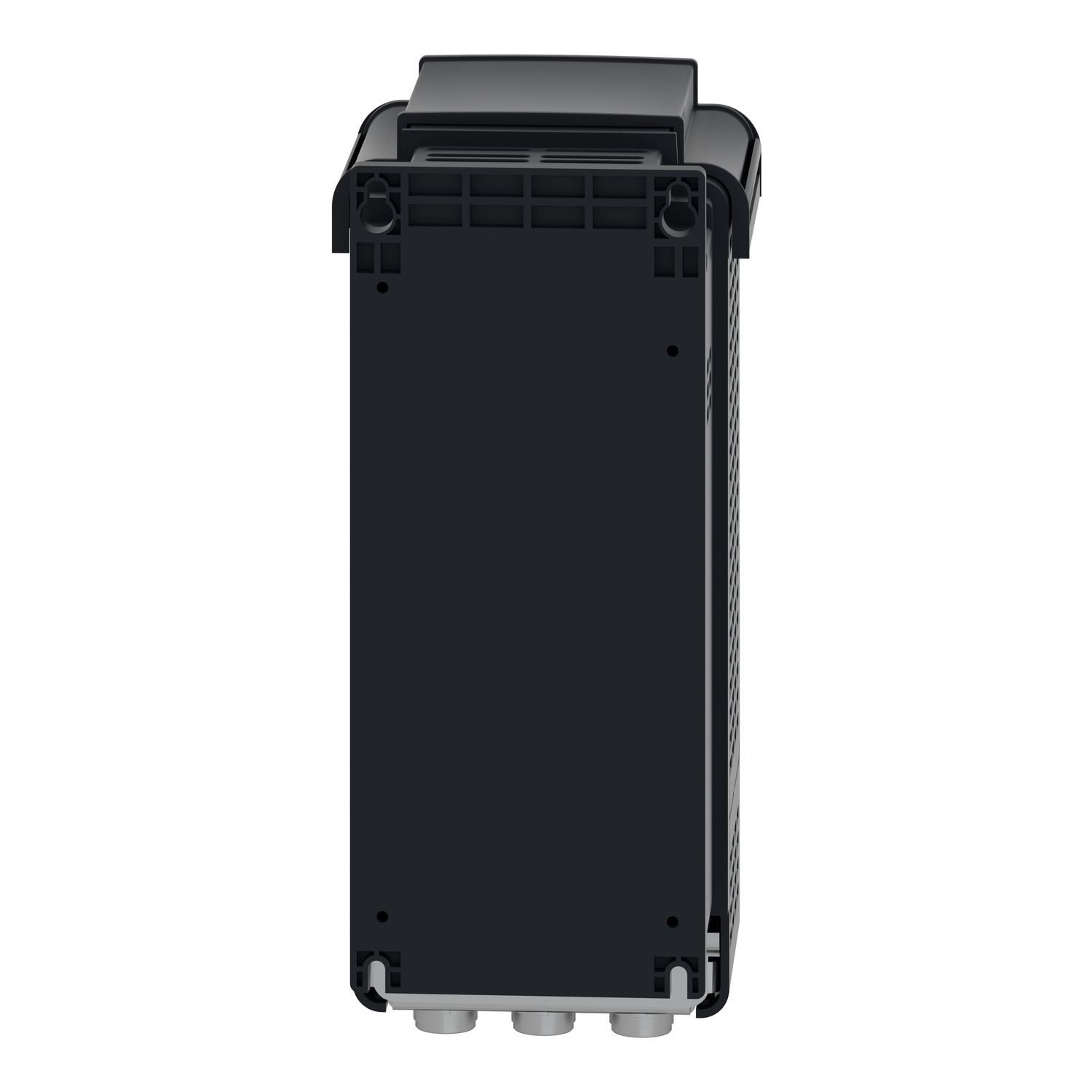

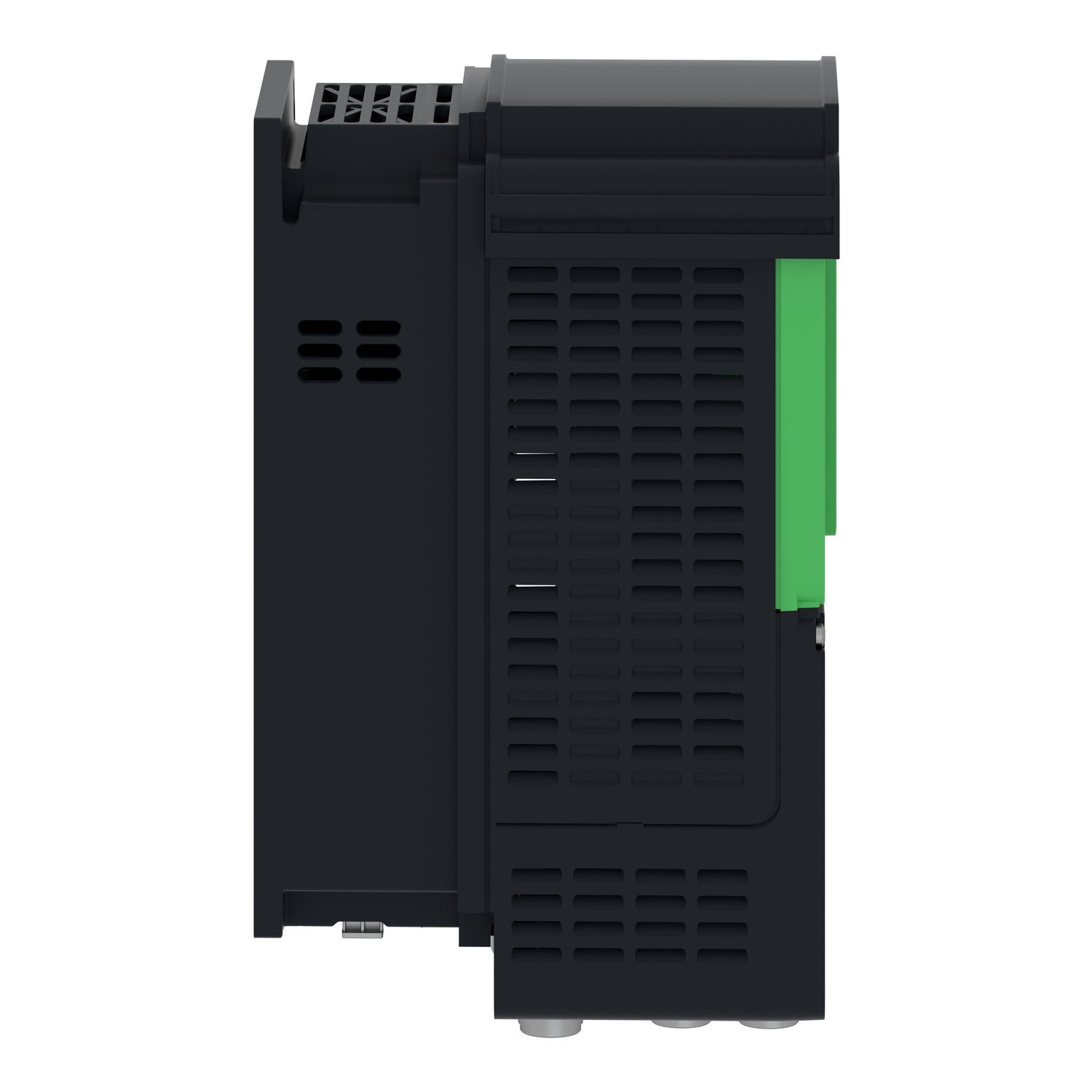

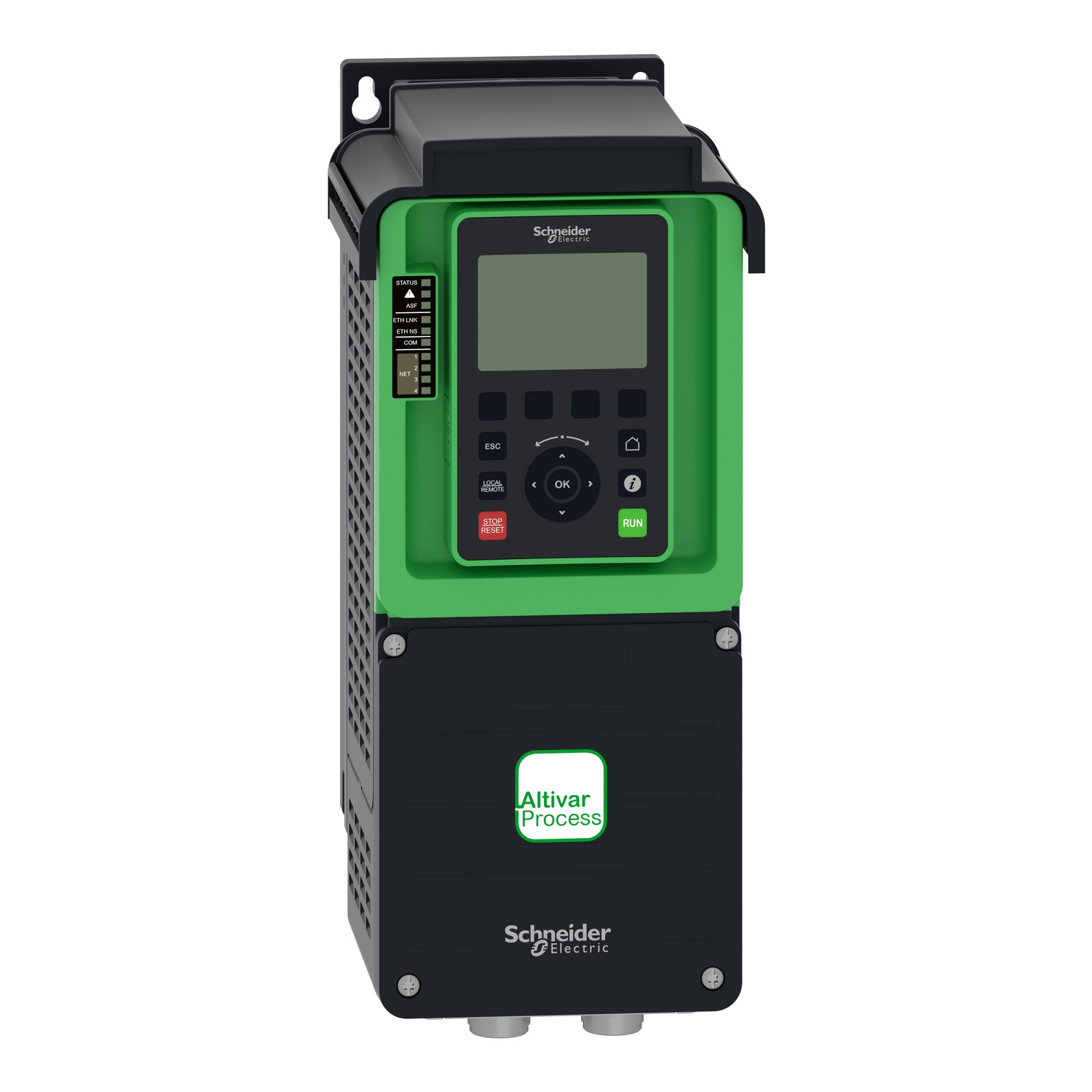

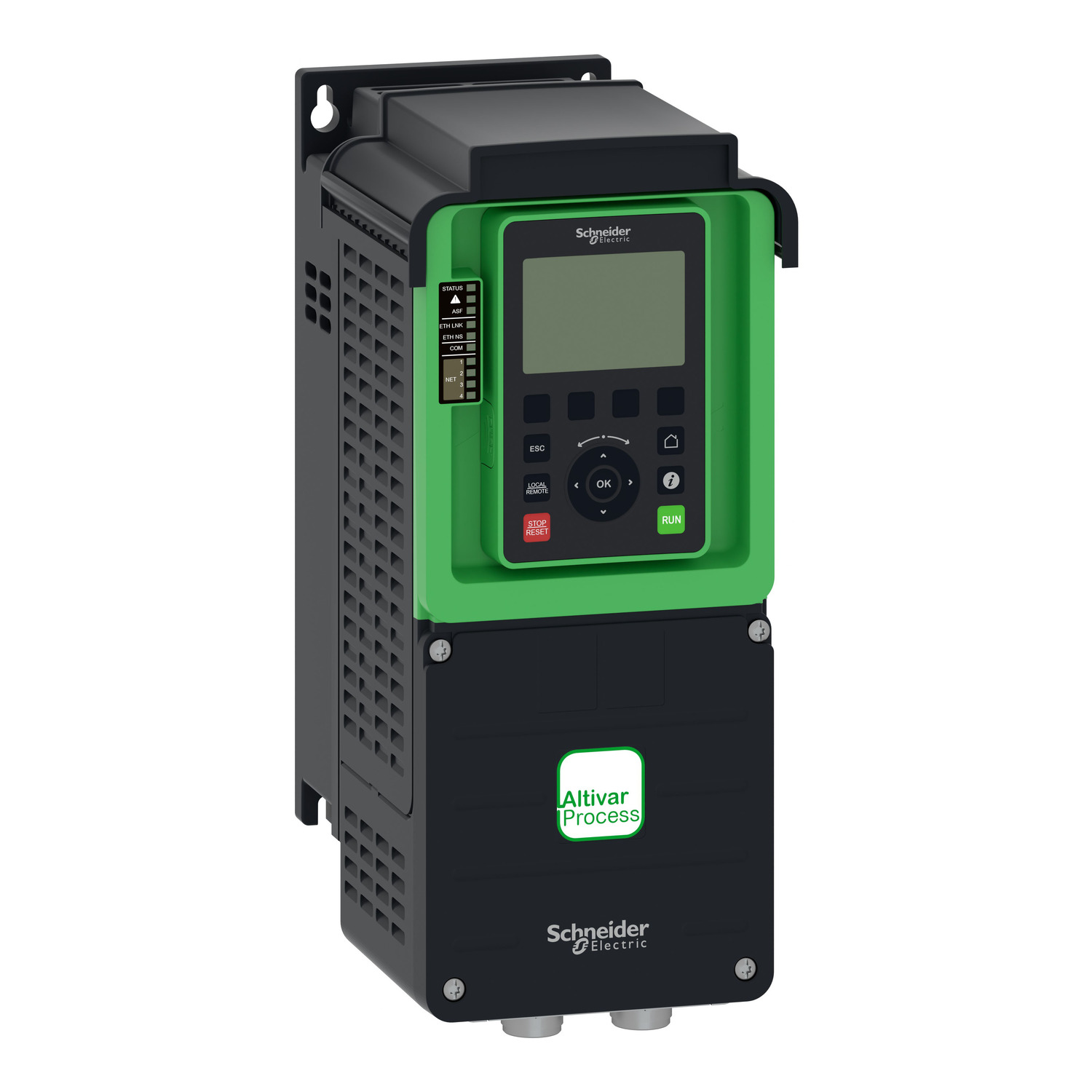

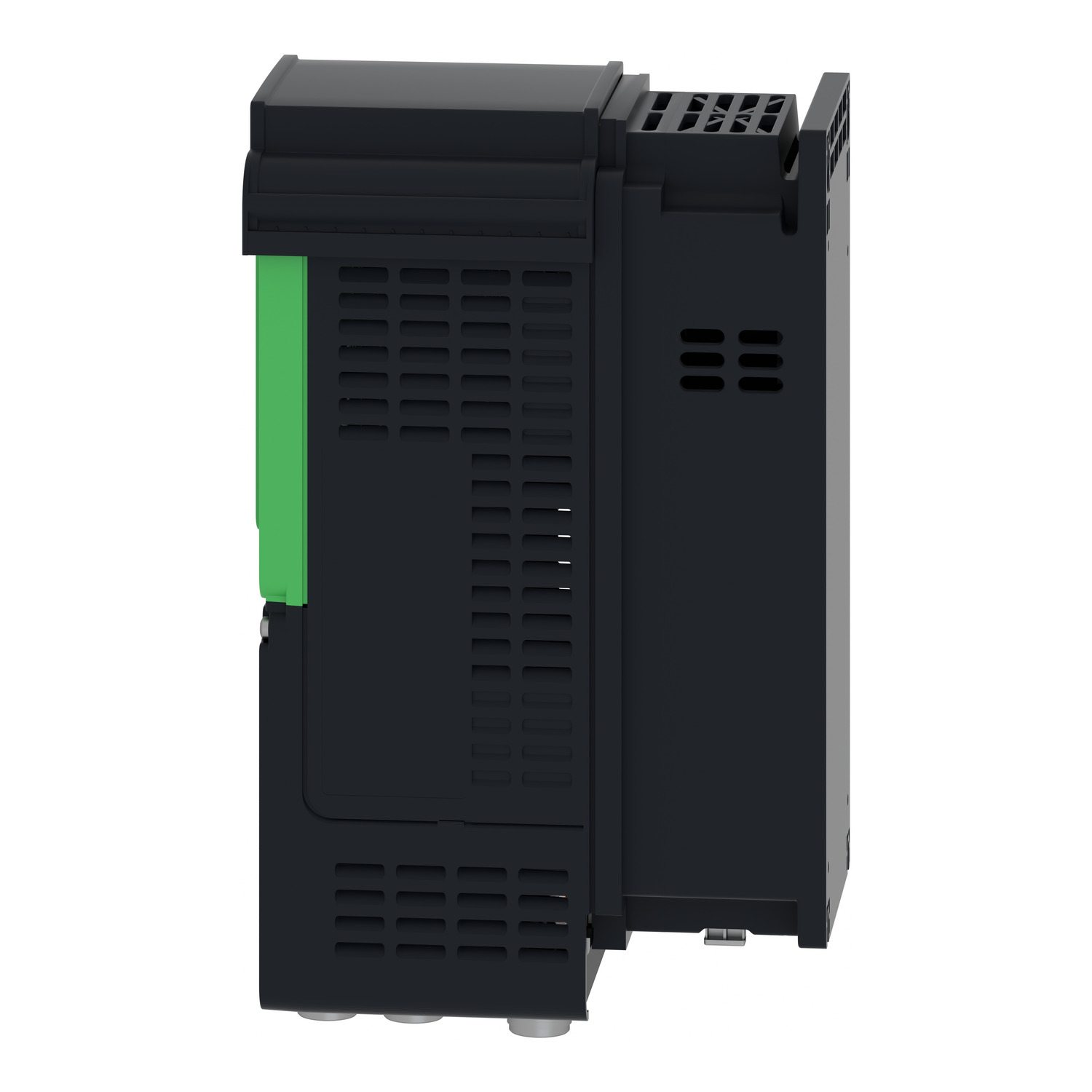

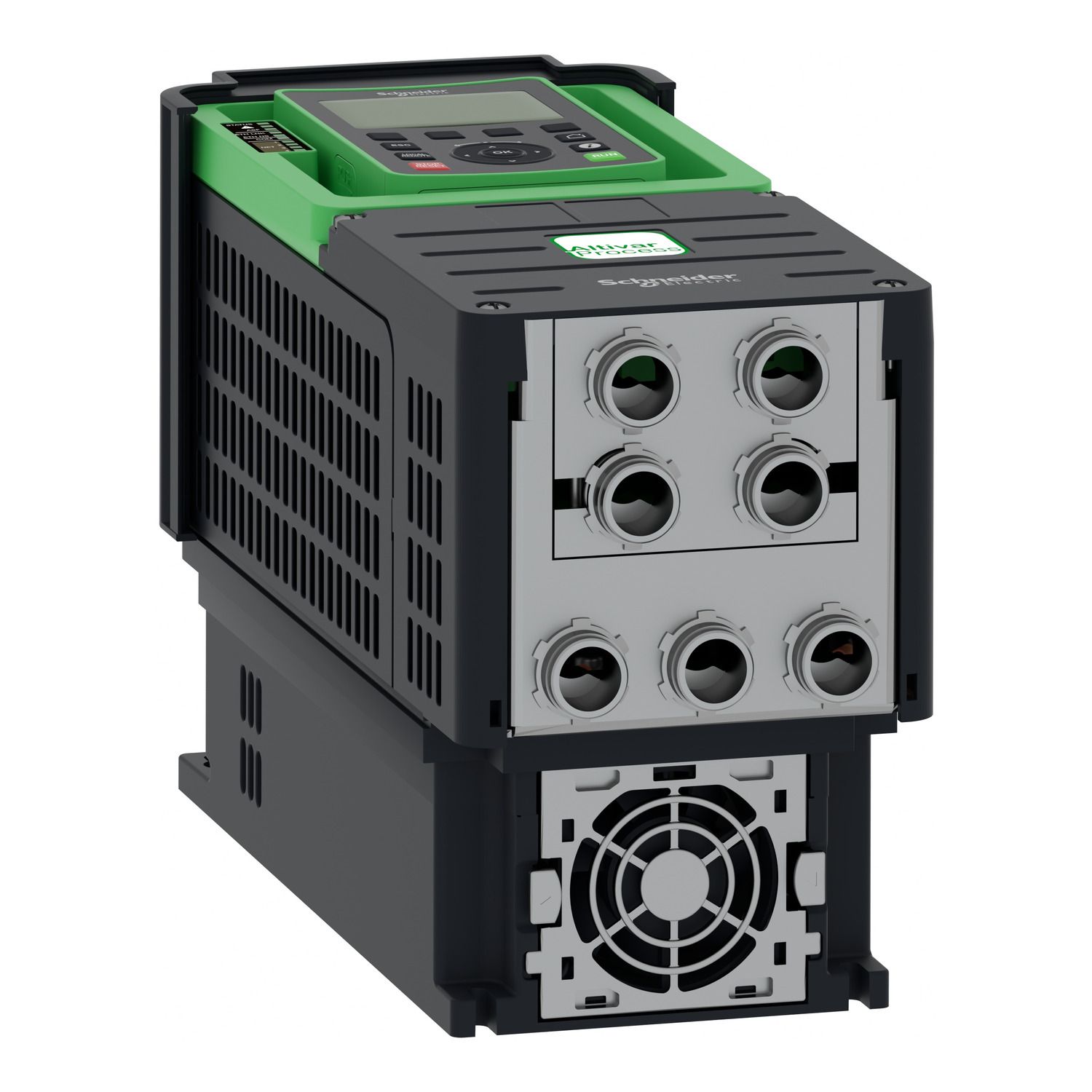

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 4kW / 5hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 3kW / 4hp for applications requiring significant overload (up to 150%). It weighs 4.6kg and its dimensions are, 144mm wide, 350mm high, 203mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Synchronous motor control profile | synchronous reluctance motor, permanent magnet motor |
| Continuous output current | 7.2 A at 4 kHz for heavy duty, 9.3 A at 4 kHz for normal duty |
| Type of cooling | forced convection |
| [Us] rated supply voltage | 380...480 V - 15...10 %, 380...480 V |
| Degree of protection | UL type 1 conforming to UL 508C |
| Safety function | STO (safe torque off) SIL 3 |
| Product specific application | process and utilities |
| Communication port protocol | Modbus TCP, Modbus serial, Ethernet |
| Switching frequency | 4...12 kHz with derating factor, 2...12 kHz adjustable |
| Apparent power | 4.5 kVA at 480 V (heavy duty), 5.6 kVA at 480 V (normal duty) |
| Variant | standard version |
| Asynchronous motor control profile | optimized torque mode, constant torque standard, variable torque standard |
| Line current | 5.4 A at 480 V (heavy duty), 6 A at 380 V (heavy duty), 6.7 A at 480 V (normal duty), 7.6 A at 380 V (normal duty) |
| Prospective line Isc | 50 kA |
| Device short name | ATV630 |
| Nominal switching frequency | 4 kHz |
| Discrete input logic | 16 preset speeds |
| Motor power kW | 3 kW (heavy duty), 4 kW (normal duty) |
| IP degree of protection | IP21 conforming to IEC 60529, IP21 conforming to IEC 61800-5-1 |
| Speed drive output frequency | 0.1-500 Hz |
| Range of product | Altivar Process ATV600 |
| Option card | communication module, Ethernet Powerlink, communication module, BACnet MS/TP, slot A: communication module, Ethernet IP/Modbus TCP/MD-Link, slot A/slot B: output relay extension module, slot A/slot B: digital and analog I/O extension module, slot A: communication module, CANopen screw terminals, slot A: communication module, CANopen SUB-D 9, slot A: communication module, CANopen daisy chain RJ45, slot A: communication module, Modbus TCP/EtherNet/IP, slot A: communication module, DeviceNet, slot A: communication module, PROFINET, slot A: communication module, Profibus DP V1 |
| Supply frequency | 50...60 Hz - 5...5 % |
| Motor power hp | 4 hp heavy duty, 5 hp normal duty |
| Product or component type | variable speed drive |
| EMC filter | integrated with 150 m conforming to EN/IEC 61800-3 category C3, integrated with 50 m conforming to EN/IEC 61800-3 category C2 |
| Product destination | synchronous motors, asynchronous motors |
| Complementary | |
| Maximum deflection under vibratory load (during storage) | 1.5 mm at 2...13 Hz |
| Braking to standstill | by DC injection |
| Capacity of DC link | 410.0 µF |
| Supporting protocol for SUCONET | False |
| Quantity per set | 1 |
| Output voltage | <= power supply voltage |
| Brake chopper integrated | False |
| Isolation | between power and control terminals |
| Enclosure mounting | wall mounted |
| Supporting protocol for DeviceNet | False |
| Minimum switching current | relay output R1, R2, R3: 5 mA at 24 V DC |
| Physical interface | 2-wire RS 485, Ethernet |
| Operating element present | True |
| Supporting protocol for PROFINET IO | True |
| Motor starter type | variable speed drive |
| Supporting protocol for Data-Highway | False |
| Number of HW interfaces serial RS232 | 0 |
| Maximum acceleration under vibratory load (during storage) | 10 m/s² at 13...200 Hz |
| Accuracy | +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output, +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input |
| Number of HW interfaces serial RS485 | 1 |
| Supporting protocol for PROFIBUS | True |
| Data format | 8 bits, configurable odd, even or no parity |
| With safety function Safe torque off (STO) | True |
| Relay output number | 3 |
| With safety function Safe Speed Monitor (SSM) | False |
| Supporting protocol for SafetyBUS P | False |
| Supporting protocol for AS-Interface Safety at Work | False |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Acceleration and deceleration ramps | linear adjustable separately from 0.01...9999 s |
| Height | 350 mm |
| Maximum acceleration under shock load (during transport) | 150 m/s² at 11 ms |
| Maximum acceleration under vibratory load (during transport) | 10 m/s² at 13...200 Hz |
| Number of HW interfaces serial RS422 | 0 |
| Optical interface present | False |
| Supporting protocol for TCP/IP | True |
| Supporting protocol for Foundation Fieldbus | False |
| Sampling duration | 10 ms +/- 1 ms (AO1) - analog output, 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms (DI5, DI6) - discrete input, 2 ms +/- 0.5 ms (DI1...DI4) - discrete input |
| Environmental class (during storage) | class 1S2 according to EN 60721-3-1, class 1C3 according to EN 60721-3-1 |
| Supporting protocol for PROFIsafe | False |
| Number of output phases | 3 |
| Analogue input type | AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits, AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits |
| Design of frequency changer | U converter |
| With safety function Safe Stop 1 (SS1) | False |
| With sft fct Safe Stop 2 (SS2) | False |
| Housing material | plastic |
| Supporting protocol for LON | False |
| Supporting protocol for BACnet | False |
| Specific application | utility |
| Nominal output current | 9.3 A |
| Discrete input number | 8 |
| Permitted relative humidity (during operation) | class 3K5 according to EN 60721-3 |
| With safety function Safe Operating Stop (SOS) | False |
| Method of access | slave Modbus TCP |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Position (SP) | False |
| Supporting protocol for DeviceNet Safety | False |
| Discrete output number | 0 |
| Supporting protocol for MODBUS | True |
| Analogue input number | 3 |
| Permitted relative humidity (during storage) | class 1K5 according to EN 60721-3 |
| Frequency resolution | analog input: 0.012/50 Hz, display unit: 0.1 Hz |
| With safety function Safe Direction (SDI) | False |
| Net weight | 4.6 kg |
| EMC limit value (complied) | True |
| IP degree of protection | IP21 |
| Relative symmetric network frequency tolerance | 5 % |
| Maximum deflection under vibratory load (during transport) | 1.5 mm at 2...13 Hz |
| Supporting protocol for INTERBUS | False |
| Discrete output type | relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Analogue output type | software-configurable current DQ-, DQ+: 100 mA, software-configurable current DQ-, DQ+: 30 V DC, software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits, software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits |
| Discrete input logic | negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1), positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1) |
| Ambient air transport temperature | -40-70 °C |
| With safety function Safely Limited Speed (SLS) | False |
| Number of HW interfaces other | 0 |
| Supply | internal supply for digital inputs and STO: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection, external supply for digital inputs: 24 V DC (19-30 V), <1.25 mA, protection type: overload and short-circuit protection |
| Number of HW interfaces serial TTY | 0 |
| Protection type | break on the control circuit: drive, overspeed: drive, line supply phase loss: drive, line supply undervoltage: drive, line supply overvoltage: drive, overvoltages on the DC bus: drive, motor phase break: drive, short-circuit protection: drive, overload of output voltage: drive, overcurrent between output phases and earth: drive, overheating: drive, safe torque off: drive, thermal protection: drive, motor phase break: motor, safe torque off: motor, thermal protection: motor |
| Discrete input type | DI7, DI8 programmable as pulse input: 0-30 kHz, 24 V DC (<= 30 V) |
| Maximum acceleration under shock load (during storage) | 150 m/s² at 11 ms |
| Power loss static current independent | 14.0 W |
| With safety function Safe programmable logic | False |
| Number of inputs, bidirectional, not potential-free | 0 |
| Number of inputs, potential-free | 0 |
| Supporting protocol for EtherNet/IP | True |
| Refresh time | relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
| Analogue output number | 2 |
| Permitted relative humidity (during transport) | class 2K5 according to EN 60721-3 |
| Mounting mode | wall mount |
| Permissible temporary current boost | 1.5 x In during 60 s (heavy duty), 1.1 x In during 60 s (normal duty) |
| Input compatibility | STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2, DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68, DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| Connector type | RJ45 (on the remote graphic terminal) for Modbus serial, RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Supporting protocol for PROFINET CBA | True |
| Base load current at low overload | 9.3 A |
| Supporting protocol for ASI | False |
| Number of HW interfaces USB | 0 |
| Environmental class (during transport) | class 2S1 according to EN 60721-3-2, class 2C3 according to EN 60721-3-2 |
| Supporting protocol for SERCOS | False |
| Transmission frame | RTU |
| Base load current at high overload | 7.2 A |
| Maximum output voltage | 480.0 V |
| With safety function Safe brake management (SBC/SBT) | False |
| Maximum output frequency | 500 kHz |
| Electrical connection | line side: screw terminal 2.5...6 mm²/AWG 14...AWG 10, motor: screw terminal 2.5...6 mm²/AWG 14...AWG 10, control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16 |
| Supporting protocol for other bus systems | False |
| Environmental class (during operation) | class 3S3 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3 |
| Computer port | True |
| Discrete and process manufacturing | water and waste water mixer, water and waste water conveyor, water and waste water fan, water and waste water compressor centrifugal, water and waste water screw compressor, water and waste water lobe compressor, water and waste water screw pump, water and waste water electro submersible pump (ESP), water and waste water positive displacement pump, water and waste water centrifuge pump, oil and gas compressor for refinery, oil and gas jet fuel pump, oil and gas water injection pump, oil and gas electro submersible pump (ESP), food and beverage processing atomization, food and beverage processing fan, food and beverage processing pump, building - HVAC screw compressor, water and waste water other application, oil and gas fan, mining mineral and metal pump, mining mineral and metal fan, food and beverage processing other application, building - HVAC compressor centrifugal |
| Application in industrial area permitted | True |
| Depth | 203 mm |
| Supporting protocol for KNX | False |
| Transmission rate | 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, 10, 100 Mbits |
| Width | 144 mm |
| Number of input phases | 3 |
| Number of addresses | 1-247 for Modbus serial |
| Linearity error | AO1, AO2: +/- 0.2 % for analog output, AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input |
| Number of HW interfaces parallel | 0 |
| Local signalling | 1 LED (red) for presence of voltage, 4 LEDs (dual colour) for communication module status, 3 LEDs (dual colour) for embedded communication status, 3 LEDs for local diagnostic |
| Power loss per device current dependent | 142.0 W |
| Motor slip compensation | can be suppressed, automatic whatever the load, adjustable, not available in permanent magnet motor law |
| Application in domestic and commercial area permitted | False |
| Supporting protocol for CAN | True |
| Maximum transient current | 10.2 A during 60 s (normal duty), 10.8 A during 60 s (heavy duty) |
| 1 phase low current possible | False |
| Relay output type | configurable relay logic R3: sequence relay NO electrical durability 100000 cycles, configurable relay logic R2: sequence relay NO electrical durability 100000 cycles, configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles |
| Type of polarization | no impedance |
| Network number of phases | 3 phases |
| Maximum associated fuse rating | 16.0 A |
| Power range | 4-6 kW at 480-500 V 3 phases, 4-6 kW at 380-440 V 3 phases |
| Nominal output power | 4.0 kW |
| Relative symmetric mains voltage tolerance | 10 % |
| Supporting protocol for INTERBUS-Safety | False |
| Exchange mode | half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| 4 quadrant operation possible | False |
| Maximum switching current | relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 30 V DC, relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 250 V AC |
| Number of HW interfaces industrial Ethernet | 1 |
| Number of HW interfaces PROFINET | 0 |
| Network frequency | 50...60 Hz |
| Environment | |
| Maximum THDI | <48 % full load conforming to IEC 61000-3-12 |
| Operating position | vertical +/- 10 degree |
| Relative humidity | 5-95 % without condensation conforming to IEC 60068-2-3 |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 1 |
| Volume of cooling air | 38 m3/h |
| Standards | IEC 13849-1, IEC 61508, IEC 60721-3, IEC 61000-3-12, EN/IEC 61800-5-1, environment 2 category C3 EN/IEC 61800-3, environment 1 category C2 EN/IEC 61800-3, EN/IEC 61800-3, UL 508C, EN/IEC 61800-3 environment 2 category C3, EN/IEC 61800-3 environment 1 category C2 |
| Overvoltage category | III |
| Operating altitude | 1000...4800 m with current derating 1 % per 100 m, <= 1000 m without derating |
| Product certifications | UL, CSA, TÜV, ATEX INERIS, ATEX zone 2/22, DNV-GL |
| Pollution degree | 2 conforming to EN/IEC 61800-5-1, 2 |
| Noise level | 54.5 dB, 54.5 dB conforming to 86/188/EEC |
| Marking | CE |
| Ambient air temperature for operation | 50-60 °C (with derating factor), -15-50 °C (without derating), -15-60 °C |
| Electromagnetic compatibility | conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Regulation loop | adjustable PID regulator |
| Vibration resistance | 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Insulation resistance | > 1 MOhm 500 V DC for 1 minute to earth |
| Power dissipation in W | forced convection: 97 W at 380 V, switching frequency 4 kHz, natural convection: 33 W at 380 V, switching frequency 4 kHz |
| Maximum input current | 7.6 A |
