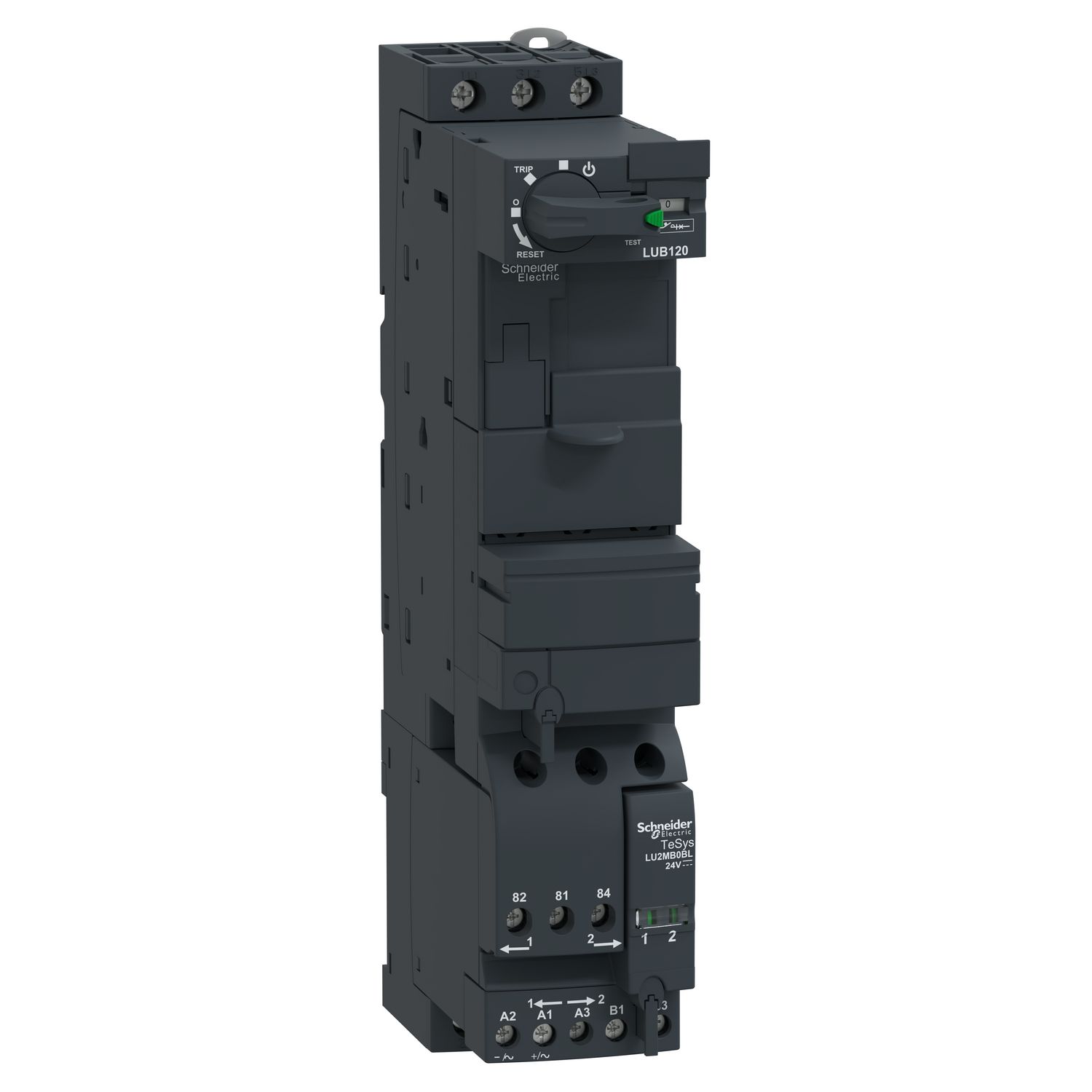

Reversing power base, TeSys Ultra, 3P, 1NO + 1NC, 12A, 690VAC, 24VDC coil

Manufacturer: Schneider Electric

SKU: LU2B12BL

GTIN: 3389110362930

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $870.10 inc GST

Price: $628.65 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys U standard reversing power base, 3 poles (3NO), rated 12A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0BL to be supplied with 24V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
Device short name	LU2B
Device application	motor protection, motor control
Control circuit voltage limits	20...27 V DC in operation, 14.5 V DC drop-out
Product compatibility	control unit LUC.12BL, control unit LUC.05BL, control unit LUC.1XBL, control unit LUC.X6BL
Range	TeSys
Range of product	TeSys Ultra
[Ics] rated service breaking capacity	4 kA at 690 V, 10 kA at 500 V, 50 kA at 440 V, 50 kA at 230 V
Network frequency	40...60 Hz
Poles description	3P
Auxiliary contacts type	type mirror contact (1 NC) conforming to IEC 60947-1, type linked contacts (1 NO + 1 NC) conforming to IEC 60947-4-1
Suitability for isolation	yes
[Ie] rated operational current	9 A at 690 V, 12 A at 500 V, 12 A at <= 440 V
Utilisation category	AC-41, AC-44, AC-43
Product name	TeSys Ultra
[Ith] conventional free air thermal current	12 A
Product or component type	reversing power base
[Uc] control circuit voltage	24 V DC
Auxiliary contact composition	1 NO + 1 NC
[Ue] rated operational voltage	690 V AC for power circuit
Complementary
Heat dissipation	1.7-1.7 W for control circuit with LUCM, 2-2 W for control circuit with LUCA, LUCB, LUCC, LUCD
Safe separation of circuit	400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 appendix N, 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 appendix N
Tightening torque	power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, control circuit: 0.8-1.2 N.m Philips no 1 screwdriver 5 mm, control circuit: 0.8-1.2 N.m flat screwdriver 5 mm
Compatibility code	LU2B
Mechanical durability	15 Mcycles
Typical current consumption	120 mA at 24 V DC I rms sealed, 120 mA at 24 V DC I maximum while closing
Inrush restraint duration	15 ms DC
Fixing mode	screw-fixed (plate), clipped (DIN rail)
Connections - terminals	power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² rigid, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-10 mm² rigid, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² rigid, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 0.34-1.5 mm² flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² rigid, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.34-1.5 mm² flexible with cable end
Maximum operating rate	3600 cyc/h
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Height	224 mm
Depth	126 mm
Width	45 mm
Operating time	70 ms closing with LUCA, LUCB, LUCC, LUCD for control circuit, 75 ms closing with LUCM for control circuit, 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM for control circuit, 75 ms without change of direction for power circuit, 150 ms with change of direction for power circuit
[Ui] rated insulation voltage	600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-6-2 (pollution degree 3)
Standards	CSA C22.2 No 60947-4-1, with phase barrier, UL 60947-4-1, with phase barrier, IEC 60947-6-2, EN 60947-6-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-6-2
Net weight	1.27 kg
Product certifications	Marine, ATEX, ASEFA, EAC, CCC, CSA, UL, CE
Environment
Resistance to fast transients	4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4, 2 kV class 3 serial link conforming to IEC 61000-4-4
Fire resistance	650 °C conforming to IEC 60695-2-12, 960 °C parts supporting live components conforming to IEC 60695-2-12
IP degree of protection	IP40 conforming to IEC 60947-1 (front panel outside connection zone), IP20 conforming to IEC 60947-1 (other faces), IP20 conforming to IEC 60947-1 (front panel and wired terminals)
Resistance to electrostatic discharge	8 kV level 4 on contact conforming to IEC 61000-4-2, 8 kV level 3 in open air conforming to IEC 61000-4-2
Protective treatment	TH conforming to IEC 60068
Ambient air temperature for storage	-40-85 °C
Immunity to voltage dips	70 % / 500 ms conforming to IEC 61000-4-11
Shock resistance	15 gn power poles closed conforming to IEC 60068-2-27, 10 gn power poles open conforming to IEC 60068-2-27
Ambient air temperature for operation	-25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-60 °C with LUCM
Operating altitude	2000 m
Immunity to radioelectric fields	10 V conforming to IEC 61000-4-6
Vibration resistance	4 gn (f= 5-300 Hz) power poles closed conforming to IEC 60068-2-27, 2 gn (f= 5-300 Hz) power poles open conforming to IEC 60068-2-27
Immunity to microbreaks	3 ms for control circuit
Resistance to radiated fields	10 V/m 3 conforming to IEC 61000-4-3
