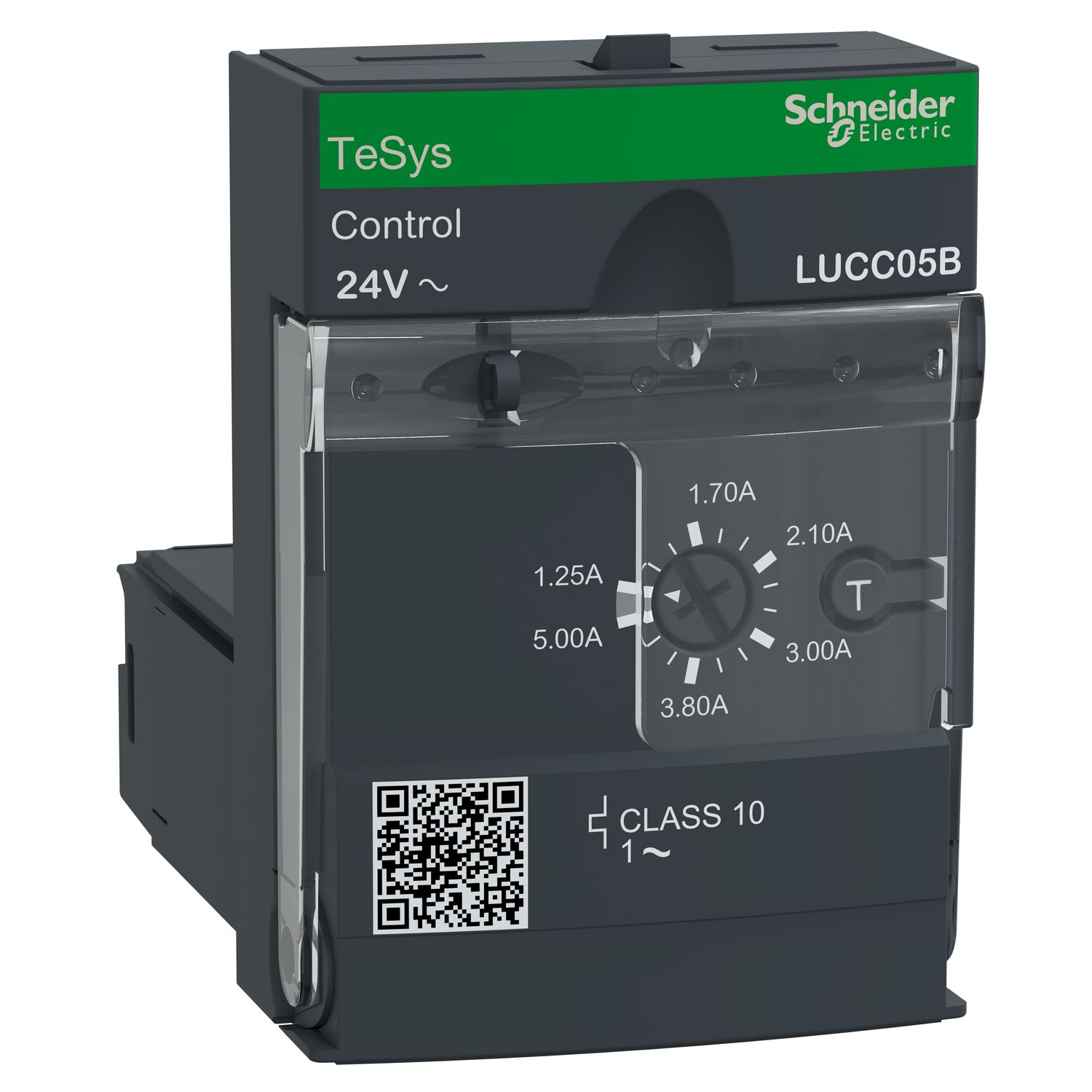

Advanced control unit, TeSys Ultra, 1P, 1.25 to 5A, protection & diagnostic, class 10, 24VAC coil

Manufacturer: Schneider Electric

SKU: LUCC05B

GTIN: 3389110364552

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $379.50 inc GST

Price: $274.19 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 0.55kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
Device short name	LUCC
Device application	motor protection, motor control
Product compatibility	reversing contactor breaker LU2B32B, reversing contactor breaker LU2B12B, power base LUB380, power base LUB320, power base LUB120, power base LUB38, power base LUB32, power base LUB12
Tripping threshold	14.2 x Ir +/- 20 %
Function available	protection against phase failure and phase imbalance, earth fault protection, manual reset, protection against overload and short-circuit
Range	TeSys
Motor power kW	0.55 kW at 400...440 V AC 50/60 Hz for 1 phase motors
Thermal overload class	class 10 - frequency limit: 40-60 Hz - temperature compensation: -25-55 °C conforming to UL 508, class 10 - frequency limit: 40-60 Hz - temperature compensation: -25-55 °C conforming to IEC 60947-6-2
Range of product	TeSys Ultra
Load type	single-phase motor
Network frequency	40...60 Hz
Product specific application	basic protection and advanced functions, communication
Utilisation category	AC-41, AC-43, AC-44
Product name	TeSys Ultra
Product or component type	advanced control unit
Thermal protection adjustment range	1.25-5 A
[Ue] rated operational voltage	690 V AC
[Uc] control circuit voltage	24 V AC
Complementary
Heat dissipation	3-3 W for control circuit with LUB38, 3-3 W for control circuit with LUB32, 2-2 W for control circuit with LUB12
Safe separation of circuit	400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1, 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1
Control circuit voltage limits	14.5 V for AC circuit 24 V drop-out, 20...26.5 V for AC circuit 24 V in operation
Compatibility code	LUCC
Typical current consumption	90 mA at 24 V AC I rms sealed with LUB38, 90 mA at 24 V AC I rms sealed with LUB32, 70 mA at 24 V AC I rms sealed with LUB12, 220 mA at 24 V AC I maximum while closing with LUB38, 220 mA at 24 V AC I maximum while closing with LUB32, 140 mA at 24 V AC I maximum while closing with LUB12
Fixing mode	plug-in (front face)
Height	66 mm
Depth	60 mm
Width	45 mm
Operating time	70 ms closing with LUB38 for control circuit, 70 ms closing with LUB32 for control circuit, 70 ms closing with LUB12 for control circuit, 35 ms opening with LUB38 for control circuit, 35 ms opening with LUB32 for control circuit, 35 ms opening with LUB12 for control circuit
[Ui] rated insulation voltage	600 V conforming to CSA C22.2 No 60947-4-1, 600 V conforming to UL 60947-4-1, 690 V conforming to IEC 60947-6-2
Standards	CSA C22.2 No 60947-4-1, with phase barrier, UL 60947-4-1, with phase barrier, IEC 60947-6-2, EN 60947-6-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-6-2
Reset	manual reset
Product certifications	Marine, ATEX, ASEFA, EAC, CCC, CSA, UL, CE
Environment
Resistance to fast transients	4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4, 2 kV class 3 serial link conforming to IEC 61000-4-4
Fire resistance	650 °C conforming to IEC 60695-2-12, 960 °C parts supporting live components conforming to IEC 60695-2-12
Resistance to electrostatic discharge	8 kV level 4 on contact conforming to IEC 61000-4-2, 8 kV level 3 in open air conforming to IEC 61000-4-2
Protective treatment	TH conforming to IEC 60068
Ambient air temperature for storage	-40-85 °C
IP degree of protection	IP40 front panel outside connection zone conforming to IEC 60947-1, IP20 other faces conforming to IEC 60947-1, IP20 front panel and wired terminals conforming to IEC 60947-1
Immunity to voltage dips	70 % / 500 ms conforming to IEC 61000-4-11
Shock resistance	15 gn power poles closed conforming to IEC 60068-2-27, 10 gn power poles open conforming to IEC 60068-2-27
Non-dissipating shock wave	2 kV common mode conforming to IEC 60947-6-2, 1 kV serial mode conforming to IEC 60947-6-2
Ambient air temperature for operation	-25-70 °C
Immunity to radioelectric fields	10 V conforming to IEC 61000-4-6
Operating altitude	2000 m
Immunity to microbreaks	3 ms
Vibration resistance	4 gn, 5-300 Hz, power poles closed conforming to IEC 60068-2-6, 2 gn, 5-300 Hz, power poles open conforming to IEC 60068-2-6
Resistance to radiated fields	10 V/m 3 conforming to IEC 61000-4-3
