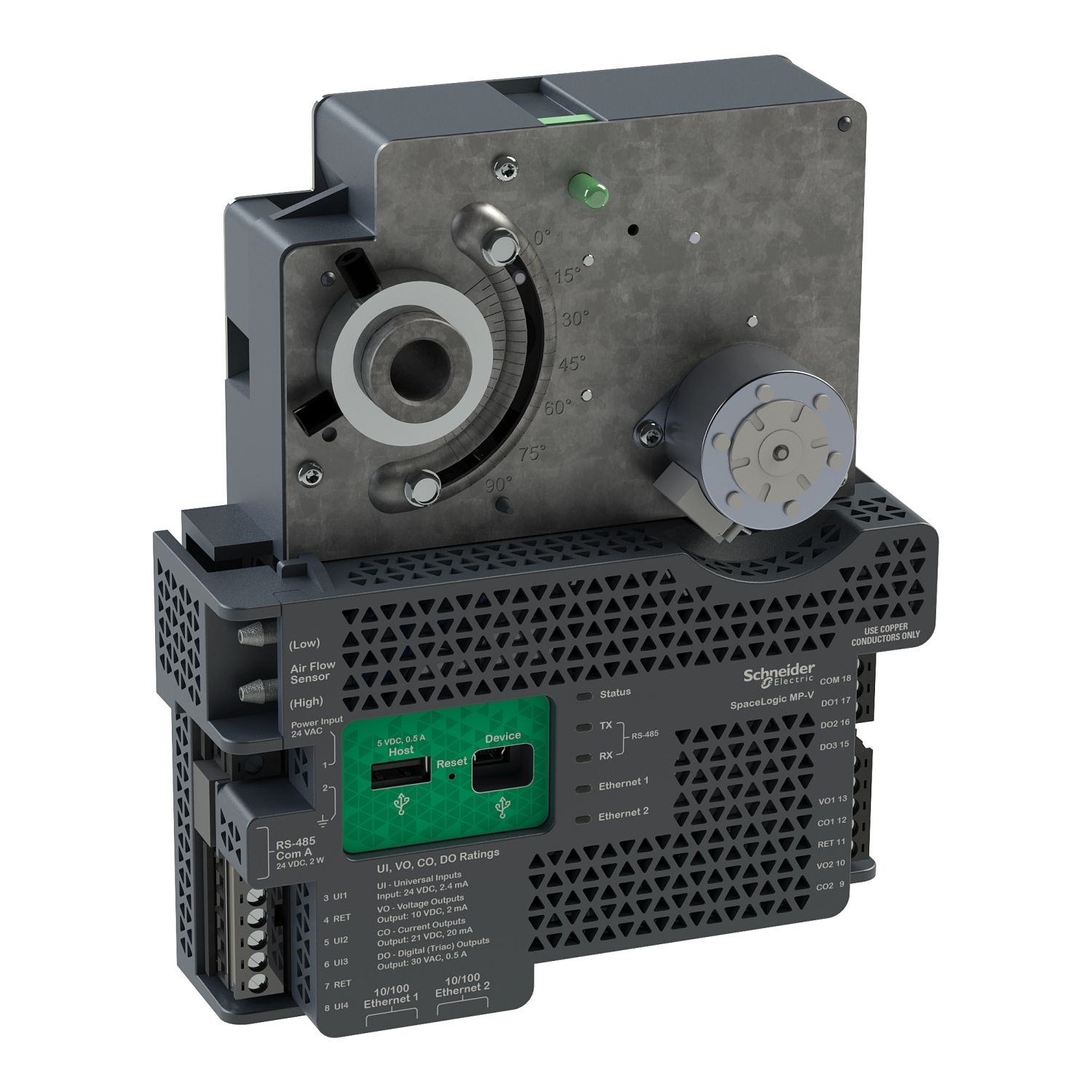

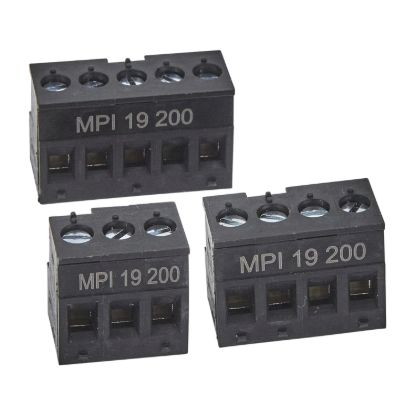

SpaceLogic MP-V controller is a room controller, fully programmable, BACnet IP based field controller dedicated for VAV applications. Configurability between BACnet IP or MS/TP as system bus communication. See compatibility matrix in release notes for supported EBO and FW versions. MP-V integrates a controller, onboard I/O, a damper actuator, and an air flow sensor in a single compact package for ease of installation. The MP-V-9A has 4 universal inputs, 3 digital triac outputs and 2 analog outputs with integrated actuator & air flow sensor. Its dimensions are 190 mm (7.5 in.) in height, 150 mm (5.9 in.) in width and 63 mm (2.5 in.) in depth. It is a UL 916 (Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be installed directly over the damper shaft of the VAV box. Available spare parts are terminal blocks (SXWMPVCON10001), Adapter for damper shaft (AM-135), eCommission Bluetooth Adapter (SXWBTAECXX10001). In-line air filer (01-2100-272)
